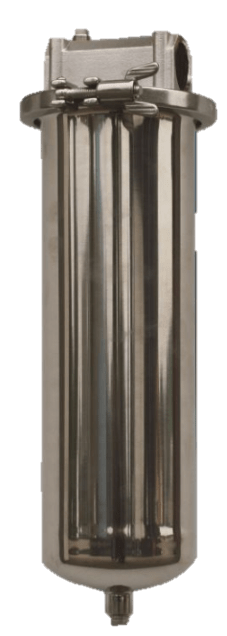

PWL Stainless Cartridge Filters

HiFlux PWL & PW Cartridge Filters are used where there is a need for reliable and precise fine filtration with a large dirt capacity. The filter housings are designed for a working pressure of 10 bar (PWL 7 bar) and equipped with a simple and secure closing system which makes it quick to change filter cartridges, thereby maximising the time the filters are in operation.

A compact design and the maximum number of built-in filter cartridges ensure the best possible flow and consequently a small differential pressure, long intervals between cartridge changes and lower energy consumption.

The filter housing, which is designed in accordance with the pressure vessel norm, is supplied in stainless acid-proof SUS316 steel.

The filterhousings are equipped with supporting tubes to give the cartridges a better tolerance when it comes to diffential pressure and temperature.

The filter housings are electropolished to achieve a smooth and uniform surface which is easy to clean and maintain.
