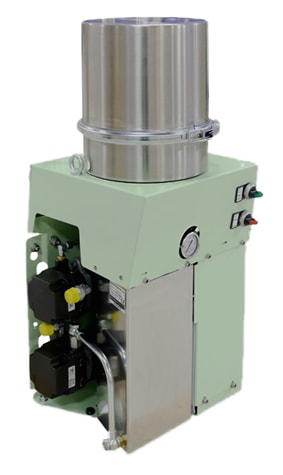

GreenOil Filtersystem incl. Preheater, 230v, 50/60Hz

SKU: WP2-H3-100
Stock:

incl. VAT

Complete system for EAL bio, lubrication, hydraulic and gear oil

The WP2-H3-100 system is used for cleaning of EAL bio, lubrication, hydraulic and gear oil. The system removes water, soot, particles, varnish and any insolubles in the oil.
The filter system is used in the maritime busi­ness and other industries to obtain optimal operating reliability of the equipment and to extend the lifetime of oil.

Functions:
This is a pressurized system comprising of two pumps and motor units together with a Green­Oil filter, a built in water separator and integral return tank.

Key Features:

  • lntegrated oil filter and water sepa­rator.
  • Patended water separator remov­ing free, emulsified and bound water down to 30 ppm.
  • Easy and quick filter change with­out oil spill.
  • No tools required for filter replace­ment.
  • No physical contact with oil when replacing filter insert.
  • A low maintenance system with many benefits.
Technical Data
Flow 100-120 l/hour
Oil pressure in, max 1 bar
Oil suction height 6 m
Viscosity 460 cSt
Power supply (VAC-Hz) 230-50/60
Power consumption 370 + 1600 Watt
Connection in 1/2"-BSPT
Connection out 1/2"-BSPT
Dimensions 727 x 462 x 329 mm3
Materials AISI 304 Stainless
Number of canisters 1
Canister volume (L) 8
Alarm Option
Panel Standard Local Panel
Preheater Standard
GreenOil Filtersystem incl. Preheater, 40-60 l/h

WP2-H3-40
GreenOil Mobile Filterunit incl. Preheater & Hose kit, 100-120 l/h

WP2-H3-100-M
