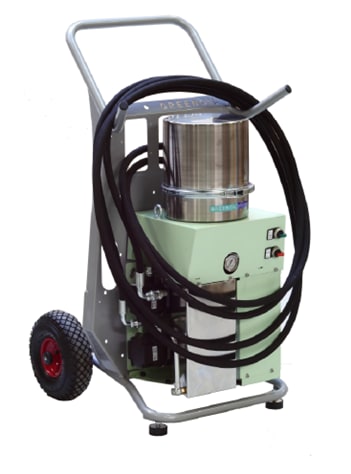

GreenOil Mobil Filterunit incl. Preheater & Hose kit 40-60 l/h

Technical specifications:

Filtered Oil Flow [l/h]: 40-60
Oil Pressure In, max. [Bar]: 1
Oil Suction Height [m]: 6
Viscosity [cSt.]: 0-460
Power Supply [VAC -Hz]: 110/230-50/60
Power Consumption 8W]: 340 x 1600
Connections ["RG](BSP): 1/2
Dimensions H x W x D: 1150 x 500 x 600 mm
Weight [kg]: 45
Materials: AISI 304 Stainless
Filter canister [liter]: 1 x 8
Preheater: Standard
Local / remote Start / stop panel: Standard Local Panel
Hydraulic hoses: 2 x 5 m 1/2"

Complete mobile system for EAL bio, lubrication, hydraulic and gear oil

The WP2-H3-40 Mobile system is used for clea­ning of EAL bio, lubrication, hydraulic and gear oil. The system removes water, soot, particles, varnish and any insolubles in the oil.
The filter system is used in the maritime busi­ness and other industries to obtain optimal operating reliability of the equipment and to extend the lifetime of oil.

Functions:
This is a pressurized system comprising of two pumps and motor units together with a Green­Oil filter, a built in water separator and integral return tank.

The in let pump continuously operates and removes the particles and water. The oil is then returned to the equipment via the outlet pump. The patended water separator is unique becau­se the oil passes through and the water is sepa­rated by heated air. The process results in remo­ving free, dissolved and bound water without damaging the oil.
The filter insert is replaced without the use of tools, oil spill or physical contact with the oil.

Ideal for thrusters, stern tube systems and propeller applications.

Key Features:

• lntegrated oil filter and water sepa­rator.
• Patended water separator remov­ing free, emulsified and bound water down to 30 ppm.
• Easy and quick filter change with­out oil spill.
• No tools required for filter replace­ment.
• No physical contact with oil when replacing filter insert.
• A low maintenance system with many benefits.
